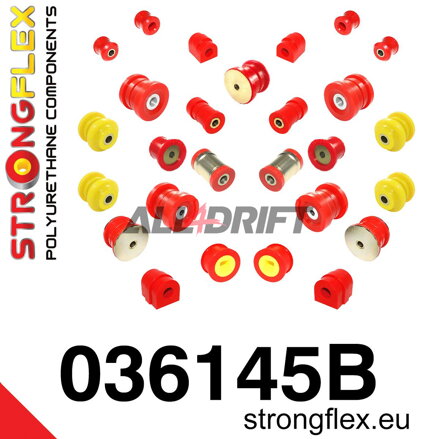

Reference: 036145B
Product name: Full suspension bush kit
Fits to:
- BMW 3 IV E46 (98-07) Compact / rwd / 4x4 xi xd
- BMW Z4 I (02-08) E85 / E86
Include:
- 2x 031248B: Front anti roll bar bush
- 2x 031516B: Front wishbone bush - centric 60mm
or - 2x 031517B: Front wishbone bush - centric 66mm
or - 2x 031518B: Front wishbone bush - eccentric 66mm
or - 2x 031520B: Front wishbone bush - 4x4 versions XI XD
- 2x 031173B: Rear trailing arm front bush
- 2x 031174B: Rear control arm upper inner
- 4x 031175A: Rear arm - outer bush SPORT
- 2x 031176B: Rear control arm lower inner
- 2x 031167B: Anti roll bar bush front / rear
- 2x 031413B: Rear subframe front bush
- 2x 031414B: Rear subframe rear bush
- 2x 031751B: Rear differential front mount bush
- 1x 031752B: Rear differential rear mount bush
- 2x 031962B: Rear anti roll bar link to anti roll bar bush
- 2x 031963B: Rear anti roll bar link to arm bush
Diagrams:

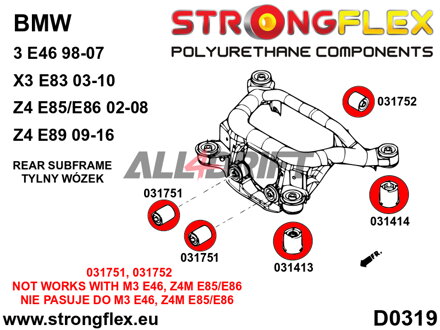

- D0319

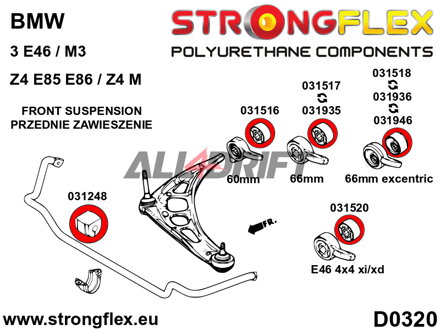

- D0320

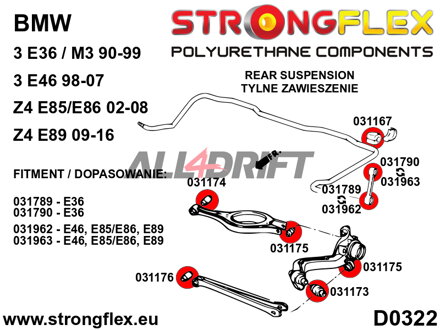

- D0322

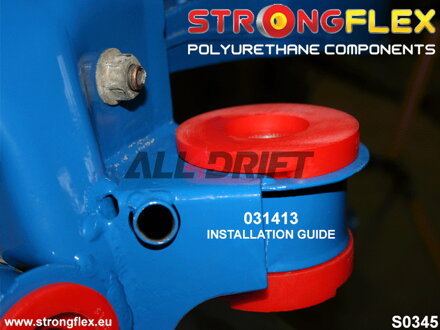

- S0345

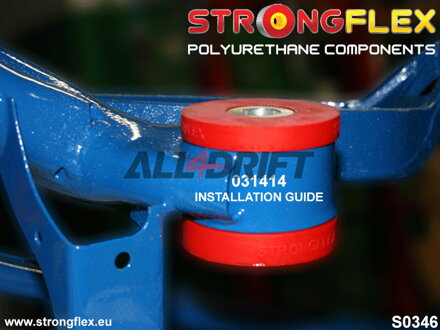

- S0346

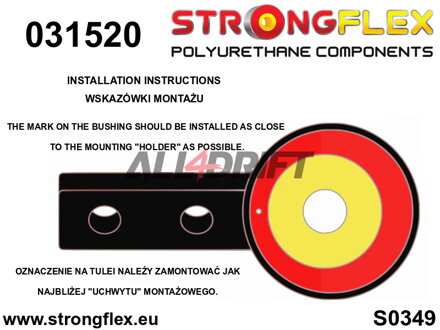

- S0349
Notes
- Front wishbone bush - rear:
031516 - centric 60mm
031517 - centric 66mm
031518 - eccentric 66mm
031520 - 4x4 versions XI XD
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 27
Hardness: 80Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
