Reference: 086022A

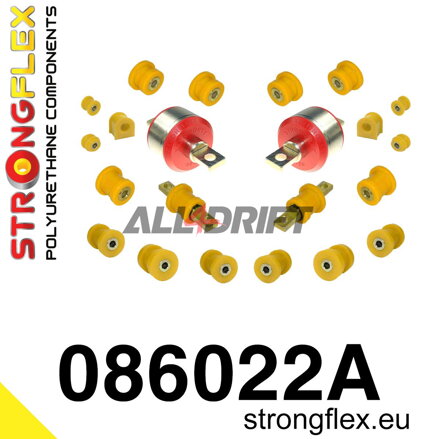

Product name: Rear suspension bush kit SPORT
Fits to:
- Honda CRX II (88-91)
- Honda CRX del Sol (92-97)
- Honda Civic IV (88-91) EC / ED / EE / EF / EX
- Honda Civic V (91-95) EG / EH / EJ
Include:
- 4x 081101A: Outer arm to hub bush and inner track arm bush 31mm SPORT
or - 4x 081107A: Outer arm to hub bush and inner track arm bush 35mm SPORT
- 2x 081102A: Rear lower shock mounting bush SPORT
- 2x 081103A: Rear upper outer link/hub bush SPORT
- 2x 081104A: Rear trailing arm mount bush SPORT
- 2x 081105B: Rear trailing arm mount bush*
- 4x 081108A: Rear toe link arm bush SPORT
- 2x 081171A: Rear anti roll bar bush SPORT
or - 2x 081172A: Rear anti roll bar bush SPORT
- 2x 081196A: Rear anti roll bar link bush SPORT
- 2x 081521A: Rear anti roll bar link bush SPORT
Diagrams:
- D0804
Notes
- Bushings 081105B can be purchased as a polyurethane "insert", without metal parts (inner and outer metal sleeve).
To mount the "insert", an external metal ring and an inner metal sleeve from the old original rubber bush are needed.
Metal parts should be burned or cut. The original internal metal bushing recovered must have a diameter of 30mm, check this value before selecting the "insert" option.
The old bush should be burnt or cut out. Bushing 081105B is not a replacement for the original bushing, the suspension will be stiffened.
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 22
Hardness: 90Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
