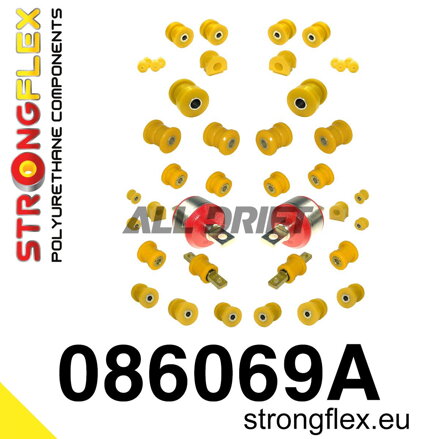

KIT ID: 086069A
Name: Full suspension bush kit SPORT
Fits:
- Honda Civic 91-95
- Honda CRX del Sol 92-97
Include:
- 4x 081100A Front upper wishbone bush SPORT
- 2x 081094A Front wishbone outer bush SPORT
- 2x 081095A Front wishbone Inner bush SPORT
- 2x 081118A Front lower wishbone rear bush SPORT
- 8x 081109A Front eye bolt mounting bush SPORT
- 2x 081097A Anti roll bar bush 18-26mm SPORT
- Notes: Measure Anti roll bush diameter before placing order
- 2x 081102A Rear lower shock mounting bush SPORT
- 4x 081108A Rear toe link arm bush SPORT
- 2x 081103A Rear upper outer link/hub bush SPORT
- 2x 081104A Rear trailing arm mount bush SPORT
- 2x 081105B Rear trailing arm mount bush
- 4x 081101A Outer arm to hub bush and Inner track arm bush SPORT (not works with VTi models)
- or
- 4x 081107A Outer arm to hub bush and inner track arm bush SPORT
- 2x 081171A Rear anti roll bar bush 13mm SPORT
- or
- 2x 081172A Rear anti roll bar bush 15mm SPORT
- Notes: Measure anti roll bush diameter before placing order
- 2x 081196A Rear anti rol bar link bush SPORT
- 2x 081521A Rear anti rol bar link bush SPORT
Pcs / KIT: 42
NOTES:
Bushings 081105B can be purchased as a polyurethane "insert", without metal parts (inner and outer metal sleeve).
To mount the "insert", an external metal ring and an inner metal sleeve from the old original rubber bush are needed.
Metal parts should be burned or cut. The original internal metal bushing recovered must have a diameter of 30mm, check this value before selecting the "insert" option.
The old bush should be burnt or cut out. Bushing 081105B is not a replacement for the original bushing, the suspension will be stiffened.
Before purchase check front anti roll bar diameter (081097 18-26mm) and rear (081171 13mm or 081172 15mm). Also check rear lower control arm bush diameter (081101 31mm or 081107 35mm)
- Diagrams:
- D0801
- D0804
- D0807
Hardness: 90ShA
Material: POLYURETHANE (PUR/PU)
To every product we add grease!
