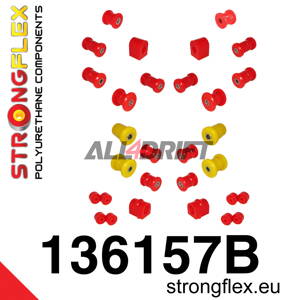

Reference: 136157B
Product name: Full suspension polyurethane bush kit
Fits to:
- Opel / Vauxhall Ascona B (75-81)
- Opel / Vauxhall Manta B (75-88)
Include:
- 8x 131126B: Front eye bolt mounting bush
- 2x 131134B: Front anti roll bar bush
- 2x 131601A: Front lower wishbone front bush SPORT
- 2x 131602A: Front lower wishbone rear bush SPORT
- 2x 131603B: Front subframe rear mounting bush
- 4x 131604B: Front upper wishbone bush
- 4x 131605B: Rear centre prop mount & rear tie bar to axle bushes
- 2x 131606B: Rear tie bar to chassis bushes
- 2x 131607B: Rear anti roll bar bush
- 1x 131608B: Rear panhard rod mount - to the body
- 1x 131609B: Rear panhard rod mount - to the chassis
Diagrams:

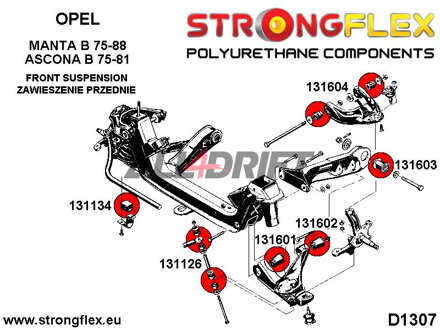

- D1307

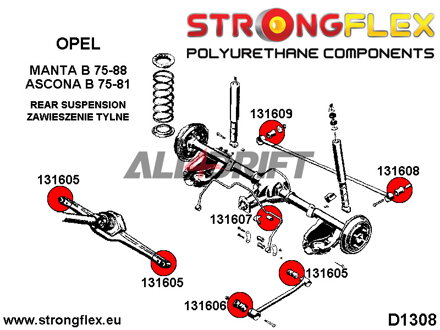

- D1308
Notes
- To install the polyurethane bushing 131604A, you must burn the old rubber bush. Do not remove the outer metal sleeve, it must be reused for this bushing!
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 26
Hardness: 80Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
