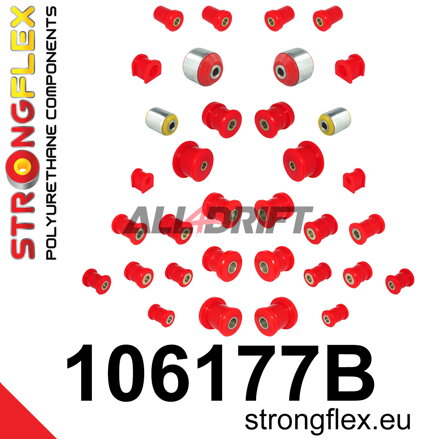

Reference: 106177B
Product name: Full suspension bush kit
Fits to:
- Mazda RX-8 (03-12) SE3P
Include:
- 2x 101670B: Front anti roll bar bush
- 2x 101671B: Front lower arm front bush
- 2x 101672B: Front lower arm rear bush
- 2x 101673A: Front shock mount bush SPORT
- 4x 101674B: Front upper arm bush
- 2x 101675B: Rear trailing arm front bush
- 2x 101676B: Rear trailing arm rear bush
- 2x 101677B: Rear upper - front arm bush
- 2x 101678B: Rear lower - front arm bush
- 2x 101679B: Rear upper - rear arm bush
- 2x 101680B: Rear lower - rear arm bush
- 2x 101681B: Rear anti roll bar bush 35mm
or - 2x 101706B: Rear anti roll bar bush 27mm
- 2x 101682B: Rear beam - front bush
- 2x 101683B: Rear beam - central bush
- 2x 101684B: Rear beam - rear bush
- 2x 101687B: Rear diff mount bush
Diagrams:

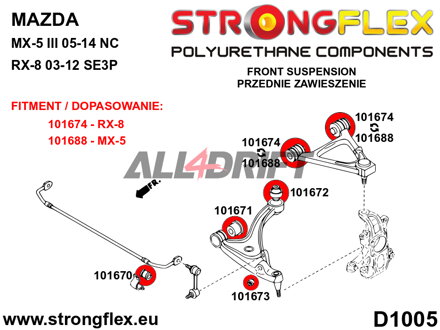

- D1005

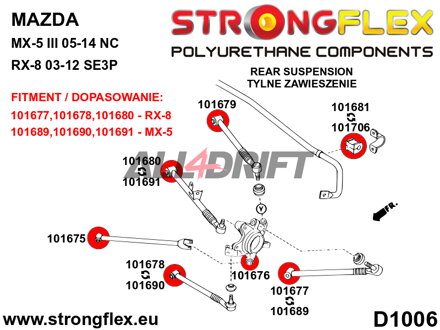

- D1006

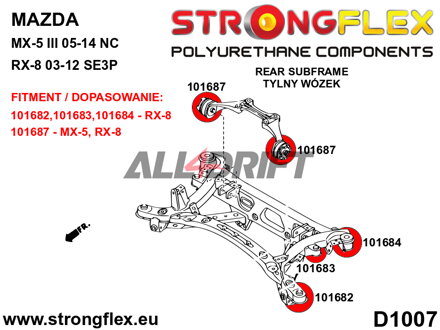

- D1007
Notes
- There are two heights of the rear anti roll bar bushing, 101681 35mm and 101706 27mm.
Please check the height of the bushing before placing order.
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 34
Hardness: 80Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
