Reference: 286216B

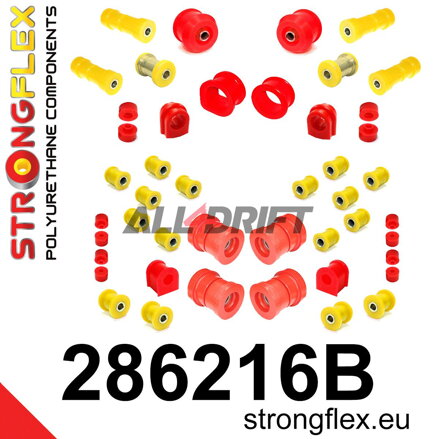

Product name: Full suspension bush kit R32 AWD
Fits to:
- Nissan Cefiro (88-92) A31 AWD
- Nissan Skyline VIII (89-94) R32 AWD
Include:
- 2x 281400B: Front anti roll bar bush
or - 2x 281401B: Front anti roll bar bush GT-R
- 1x 286234B: Steering gear bushing kit
- 2x 281957A: Front upper arm - upper bush SPORT
- 2x 281958A: Front upper arm - lower bush SPORT
- 2x 281262B: Front lower radius arm to chassis bush
or - 2x 281788B: Front lower radius arm to chassis bush GT-R
- 12x 281218A: Rear arm bush SPORT
- 4x 281267A: Rear lower control arm bush SPORT
- 2x 281268B: Rear anti roll bar bush
- 4x 281269B: Rear anti roll bar link bush
- 4x 281271B: Rear beam mounting bush AWD
- 2x 281849B: Rear diff mount - front bush
- 1x 281850B: Rear diff mount - rear bush
Diagrams:
- D2821
- D2832
- D2838
- D2841
- D2860
- S2806
- S2807
Notes
- Depending on the version, there are different stabilizer bushes 281400 / 281401, see photo S2806.
- Depending on the version, there are different front reaction rod bushes:
281262 - bush length 70mm
281788 - bush length 83mm
See photo S2807.
- Due to frequent modifications for Motorsport, Drift, etc., the original rear bogie pads no. oem. 55475-60U00, 55451-33P01 You can buy a replacement for the original washer matched to our sleeve. In the "Cart sleeve washer" field, select the number of washers you need (0pcs/2pcs/4pcs).
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 39
Hardness: 80Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
