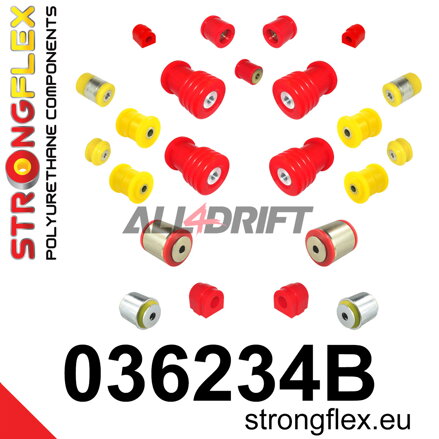

KIT ID: 036234B
Name: Full suspension bush kit E39 Touring
- Fit:
- BMW E39 Touring (95-03)
- Include:
- 2 x 031238B Front anti roll bar bush
or
2 x 031248B Front anti roll bar bush
- 2 x 031420B Front lower tie bar to chassis bush 58mm
or - 2 x 031638B Front lower tie bar to chassis bush 66mm
- 2 x 031421A Front inner track control arm bush SPORT
- 2 x 031197A Rear lower trailing arm front bush 10mm SPORT
- 2 x 031198A Rear lower trailing arm rear bush 14mm SPORT
- 2 x 031744A Rear toe adjust inner bush 10mm SPORT
- 2 x 031745A Rear upper arm inner bush SPORT
- 4 x 031716B Rear beam mount bush
- 1 x 031717B Rear diff mount - front bush
- 2 x 031718B Rear diff mount - rear bush
- 2 x 031167B Rear anti roll bar bush
Pcs/prod: 23
Required/car: 1
- Diagrams:

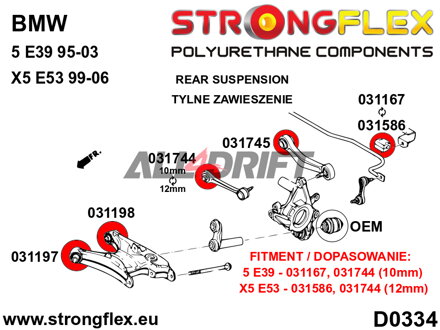

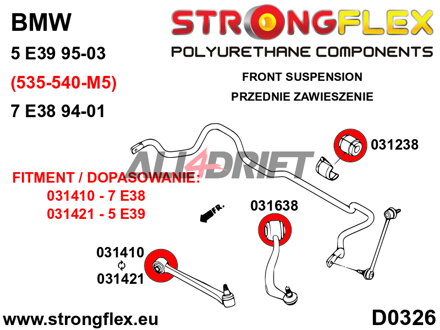

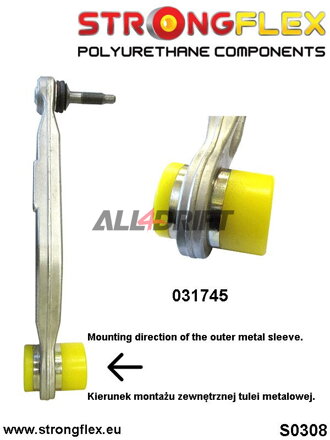

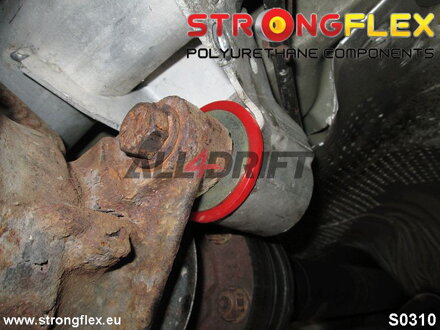

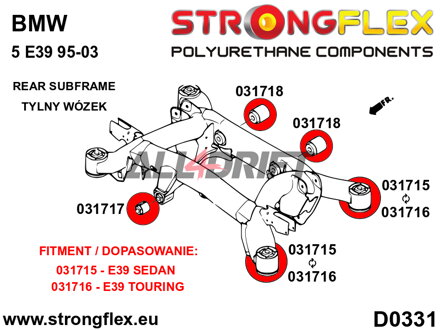

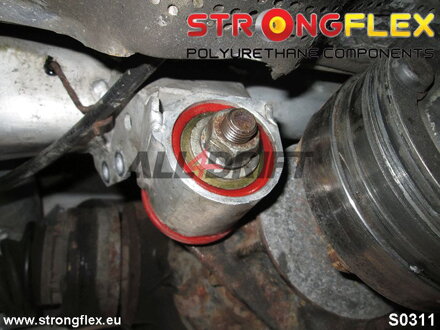

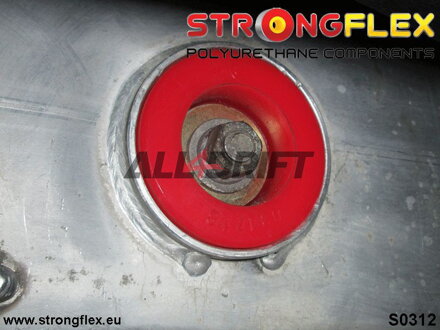

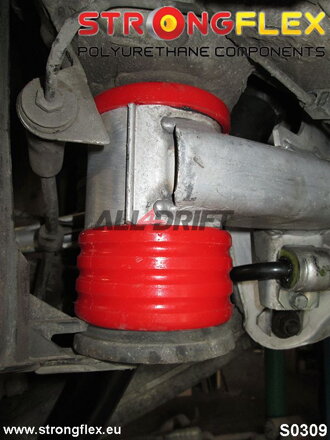

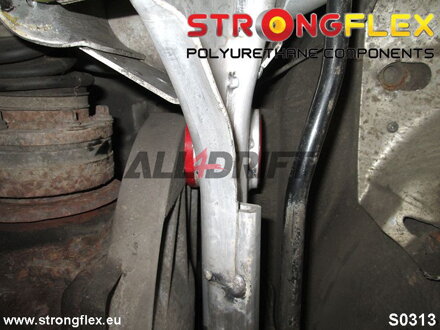

- D0304,D0326,D0331,D0334,S0307,S0308,S0309,S0310,S0311,S0312,S0313,S0317
NOTE!
There are two types of front stabilizer bushing 031238/031248.
Before buying check the type of bush.

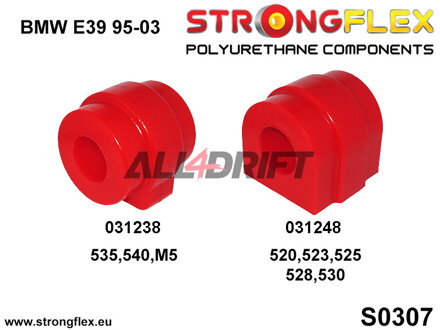

See picture S0307
NOTE!
There are two types of front control arm bush.
031420 - 58mm models 520-530,
031638 - 66mm models 535, 540 & M5.
Before buying check the type of bush.
Hardness: 80ShA
Material: POLYURETHANE (PUR/PU)
To every product we add grease!
