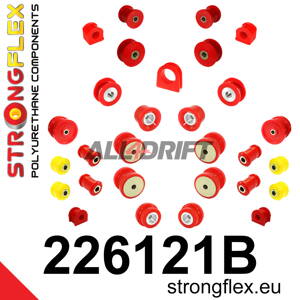

Reference: 226121B
Product name: Full suspension bush kit
Fits to:
- Audi A3 I (96-03) 8L Quattro
- Audi S3 I (96-03) 8L
- Audi TT 8N (99-06) Quattro
- Seat Leon I (99-05) 1M 4x4
- Seat Leon I (99-05) 1M Cupra R 4x4
- Škoda Octavia I (96-10) 1U 4x4
- Volkswagen Bora I (98-05) 1J 4Motion
- Volkswagen Golf IV (97-10) 1J 4Motion
- Volkswagen Golf IV (02-03) 1J R32
- Volkswagen New Beetle (97-10) RSi
Include:
- 2x 221072B: Front wishbone - front bush 30mm
or - 2x 221343B: Front wishbone - front bush 45mm
- 2x 221077B: Front wishbone - rear bush
or - 2x 221344B: Front wishbone - rear bush
- 2x 221088B: Front anti roll bar bush
or - 2x 221089B: Front anti roll bar bush
- 0/4x 221084B: Anti roll bar link bush
- 2x 021784B: Front subframe bush
- 4x 221371B: Rear wishbone inner bush
- 4x 221940A: Rear tie bar to hub bush SPORT
- 2x 221372B: Rear lower wishbone front mounting bush
- 2x 221445B: Rear anti roll bar bush
- 2x 221862B: Rear diff mount - front bush
- 2x 221863B: Rear diff mount - rear bush
- 4x 221864B: Rear subframe bush
- 1x 221965B: Steering rack mount bush
- 0/2x 221899B: Front shock top mount bush
Diagrams:
- D0208
- D2203
- D2207
- D2208
- D2216
- D2223
- D2227
- S2201
- S2202
- S2206
- S2207
Notes
- In models in which "cast steel" wishbones were installed, there are two types of front wishbone bushings.
Earlier models were equipped with sleeves with a diameter of Ø30mm (221072), while later models had sleeves with a diameter of Ø45mm (221343). The rear bushing for this control arm is 221344.
For "stamped steel/sheet metal" wishbones, matching bushings are: 221072 and 221077.
Before placing an order, please check the type of swing arm carefully. In the case of a "steel cast" swing arm, also check the diameter of the front bush (See photo S2201)! - There are two types of front stabilizer bushings.
OLD TYPE - 221088 or NEW TYPE - 221089
See photo S2202 - Depending on the type of front stabilizer link, select the correct number of bushings 221084 (0 or 4 pieces)
- Front shock top mount bush 221899B:
Depending on your needs, choose the appropriate quantity 0pcs / 2pcs.
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 29/31/33/35
Hardness: 80Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
