Reference: 026258B

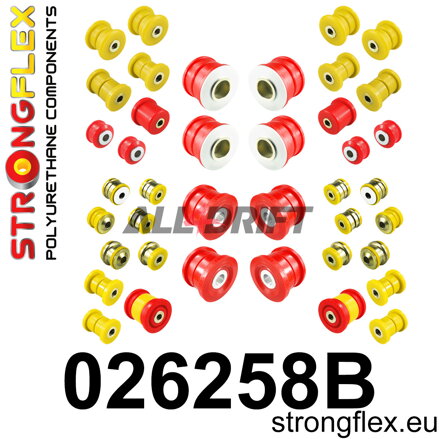

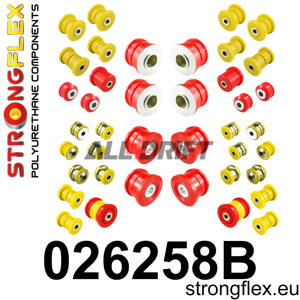

Product name: Full suspension polyurethane bush kit
Fits to:
- Audi Q7 / SQ7 4L (05-15)
- Porsche Cayenne I (02-10)
- Volkswagen Touareg I (02-10)
Include:
- 4x 022011A: Front upper arm bush SPORT
- 2x 022012A: Front lower wishbone bush – inside SPORT
- 2x 022013A: Front lower wishbone bush – outside SPORT
or - 2x 022014A: Front lower wishbone bush – outside SPORT
- 2x 022015B: Front lower wishbone bush – rear 60mm
or - 2x 022016B: Front lower wishbone bush – rear 72mm
- 4x 022018B: Front anti roll bar bush
- 4x 022019B: Front subframe bush
- 2x 022020B: Rear lower arm – front bush
- 2x 022021A: Rear lower arm – rear bush SPORT
- 2x 022022A: Rear steering knuckle bush SPORT
- 2x 022023A: Rear upper arm bush – inside SPORT
- 2x 022024A: Rear upper arm bush – outside SPORT
- 2x 022025A: Rear upper arm bush – inside SPORT
- 2x 022026A: Rear upper arm bush – outside SPORT
- 2x 022027A: Rear rod bush - inside SPORT
- 2x 022028A: Rear rod bush – outside SPORT
- 4x 022030B: Rear subframe bush
- 6x 022031B: Diff mount bush
- 2x 022032B: Steering rack bush
Diagrams:
- D0223
- D0224
- D0225
- D0226
- D0239
Notes
- The set does not include the stabilizer bushing.
- Front Lower Control Arm Bushing - Outer:
022013 - Steel Control Arm
022014 - Aluminum Control Arm - Front Lower Control Arm Bushing - Rear:
022015 - Diameter 60mm
022016 - Diameter 72mm
Before purchasing, check the type of control arm and the diameter of the rear bushing.
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 48
Hardness: 80Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
