Reference: 016260A

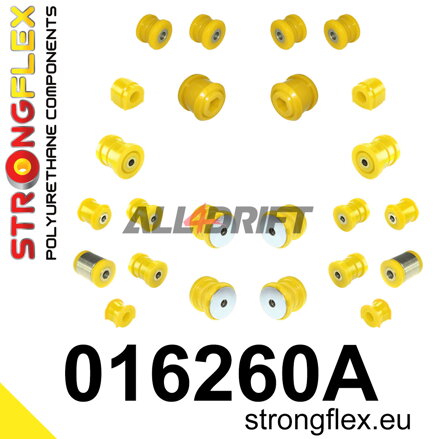

Product name: Full suspension polyurethane bush kit SPORT
Fits to:
- Alfa Romeo 159 (05-11) type 939
- Alfa Romeo Brera (05-10) type 939
- Alfa Romeo Spider (05-10) type 939
Include:
- 2x 011653A: Front upper arm - front bush SPORT
- 2x 011654A: Front upper arm - rear bush SPORT
- 2x 011703A: Front lower arm rear bush 46mm SPORT
or - 2x 011704A: Front lower arm rear bush 54mm SPORT
- 2x 011870A: Front anti roll bar bush SPORT
- 2x 011871A: Rear anti roll bar bush SPORT
- 2x 011872A: Rear trailing arm - front bush SPORT
- 2x 011873A: Rear upper arm bush SPORT
- 2x 011874A: Rear hub - upper bush SPORT
- 2x 011875A: Rear lower arm bush SPORT
- 2x 011877A: Rear hub - lower bush SPORT
- 4x 011929A: Rear crossmember bush SPORT
Diagrams:
- D0106
- D0108
- S0106
- S0107
Notes
- To mount bushing 011703/011704 use external aluminum bracket from the old original rubber.

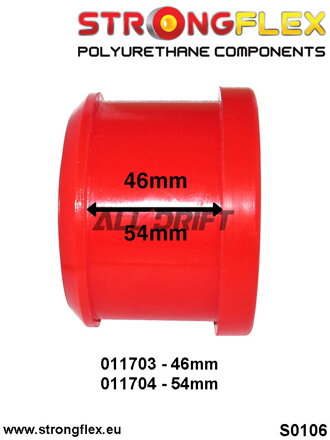

- There are two sizes of brackets bush.
Older models to about 2007 years have 46mm bracket (bush 011703).
Later models after about 2007 years have 54mm bracket (bush 011704). - For bush 011870/011871:

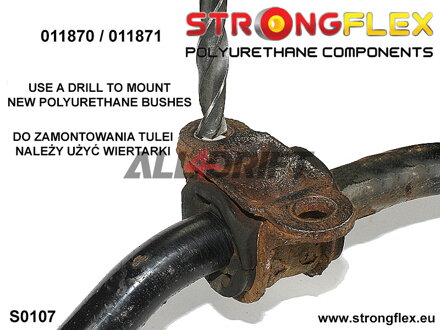

In order to install a new polyurethane bush, the stabilizer clamp must be drilled. Do not drill through the clamp!
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 24
Hardness: 90Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
