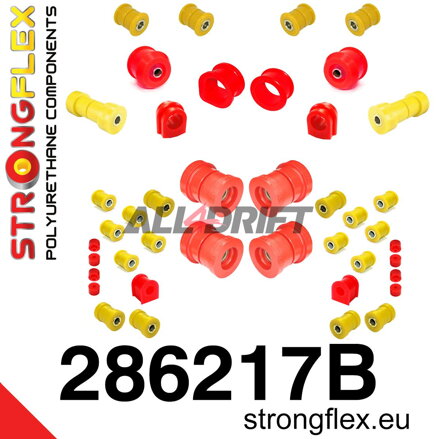

Reference: 286217B
Product name: Full suspension bush kit R33 R34 RWD
Fits to:
- Nissan Skyline IX (93-98) R33 RWD
- Nissan Skyline X (97-02) R34 RWD
Include:
- 2x 281400B: Front anti roll bar bush
or
- 2x 281401B: Front anti roll bar bush GTR
- 4x 281622A: Front upper wishbone bush SPORT
- 2x 281913A: Front hub bush SPORT
- 1x 281261B: Steering rack mount bush
45mm/48mm/50mm
- 2x 281262B: Front lower radius arm to chassis bush
or
- 2x 281788B: Front lower radius arm to chassis bush
- 2x 281263A: Front inner track control arm bush 34mm SPORT
or
- 2x 281397A: Front inner track control arm bush 38mm SPORT
- 2x 281399A: Rear roe link inner bush SPORT
- 10x 281218A: Rear arm bush SPORT
- 4x 281398A: Rear trailing arm bushes SPORT
- 2x 281268B: Rear anti roll bar bush
- 4x 281269B: Rear anti roll bar link bush
- 4x 281270B: Rear beam mounting bush RWD
- 2x 281849B: Rear diff mount - front bush
- 2x 281850B: Rear diff mount - rear bush
Diagrams:
- D2803
- D2837
- D2839
- D2840
- D2841
- S2804
- S2805
Notes
- Select the appropriate diameter of the steering gear bushing 45mm/48mm/50mm.
- Select the appropriate front lower wishbone bushings:
281263 - outer diameter 34mm
281397 - outer diameter 38mm
See photo S2808.
- Depending on the version, there are different stabilizer bushes 281400 / 281401, see photo S2806.

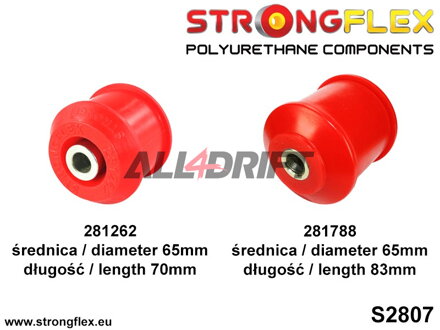

- Depending on the version, there are different front reaction rod bushes:
281262 - bush length 70mm
281788 - bush length 83mm
See photo S2807.
- Due to frequent modifications for Motorsport, Drift, etc., may lack the original rear bogie pads no. oem. 55475-60U00, 55451-33P01. You can buy a replacement for the original washer matched to our bush. In the "Subframe bush washers" field, select the number of washers you need (0pcs/2pcs/4pcs).
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 43
Hardness: 80Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
