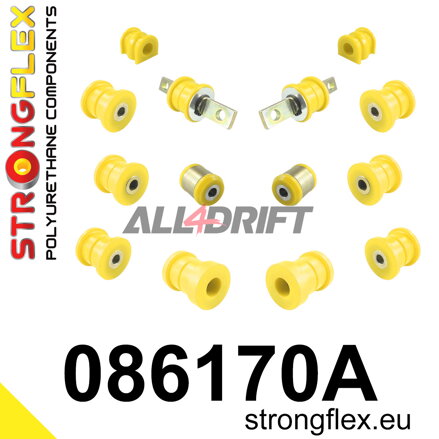

KIT ID: 086170A
Name: Rear suspension bush kit SPORT
- Fit:
- Acura RSX 01-06
- Honda Civic 01-06 EP1 EP2 EP3 EP4 EU5 EU6 EU7 EU8 EU9 EV1 EM2 ES4 ES5
- Honda CR-V 02-06
- Honda Element 03-11
- Honda Integra DC5 01-06
- Include:
- 2 x 081574A Rear trailing arm front bush SPORT
- 2 x 081575A Rear suspension inner lower bush SPORT
- 2 x 081576A Rear lower arm outer front bush SPORT
- 2 x 081577A Rear lower arm outer rear bush SPORT
- 2 or 4 x 081578A Rear suspension bush SPORT*
- 2 or 0 x 081579A Rear upper arm inner bush SPORT*
- 2 x 081581A Rear anti roll bar bush SPORT
- Diameters:
- 12,15,17,18,19mm
Pcs/prod: 14
Required/car: 1
- Diagrams:
- D0816
NOTE!
Before buying bush, select the right combination for your model.
Fixing screws bushes are available in several sizes.- Civic
081575, 081576 - 12mm - CR-V
081575, 081576 - 12mm - Element
081575, 081576 - 14mm - Integra
081575, 081576 - 12mm
NOTE!
*Depending on the model, you need 2 x 081578A and 2 x 081579A or 4 x 081578A for the car.
2 x 081578 i 2 x 081579
ACURA - RSX 01-06
HONDA - CIVIC 01-06, INTEGRA 01-06
4 x 081578
HONDA - CRV 02-07, ELEMENT 03-11
Before adding to the basket, check the quantity needed for your model.
(see the attached diagram D0816)
Measure Anti Roll Bar diameter before placing order.
NOTE!
For mounting bush 081574 you need reuse old metal parts from your original bushes.
Details of the assembly shown in the attached photo.
Hardness: 90ShA
Material: POLYURETHANE (PUR/PU)
To every product we add grease!
