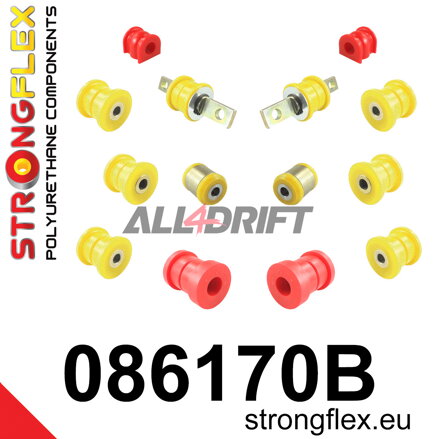

KIT ID: 086170B
Name: Rear suspension bush kit
- Fit:
- Acura RSX 01-06
- Honda Civic 01-06 EP1 EP2 EP3 EP4 EU5 EU6 EU7 EU8 EU9 EV1 EM2 ES4 ES5
- Honda CR-V 02-06
- Honda Element 03-11
- Honda Integra DC5 01-06
- Include:
- 2 x 081574B Rear trailing arm front bush
- 2 x 081575A Rear suspension inner lower bush
- 2 x 081576A Rear lower arm outer front bush
- 2 x 081577A Rear lower arm outer rear bush
- 2 or 4 x 081578A Rear suspension bush*
- 2 or 0 x 081579A Rear upper arm inner bush*
- 2 x 081581B Rear anti roll bar bush
- Diameters:
- 12,15,17,18,19mm
Pcs/prod: 14
Required/car: 1
- Diagrams:
- D0816
NOTE!
Before buying bush, select the right combination for your model.
Fixing screws bushes are available in several sizes.- Civic
081575, 081576 - 12mm - CR-V
081575, 081576 - 12mm - Element
081575, 081576 - 14mm - Integra
081575, 081576 - 12mm
NOTE!
*Depending on the model, you need 2 x 081578B and 2 x 081579B or 4 x 081578B for the car.
2 x 081578 i 2 x 081579
ACURA - RSX 01-06
HONDA - CIVIC 01-06, INTEGRA 01-06
4 x 081578
HONDA - CRV 02-07, ELEMENT 03-11
Before adding to the basket, check the quantity needed for your model.
(see the attached diagram D0816)
Measure Anti Roll Bar diameter before placing order.
NOTE!
For mounting bush 081574 you need reuse old metal parts from your original bushes.
Details of the assembly shown in the attached photo.
Hardness: 80ShA
Material: POLYURETHANE (PUR/PU)
To every product we add grease!
