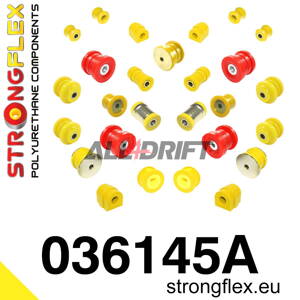

Reference: 036145A
Product name: Full suspension bush kit SPORT
Fits to:
- BMW 3 IV E46 (98-07) Compact / rwd / 4x4 xi xd
- BMW Z4 I (02-08) E85 / E86
Include:
- 2x 031248A: Front anti roll bar bush SPORT
- 2x 031516A: Front wishbone bush - centric 60mm SPORT
or - 2x 031517A: Front wishbone bush - centric 66mm SPORT
or - 2x 031518A: Front wishbone bush - eccentric 66mm SPORT
or - 2x 031520A: Front wishbone bush - 4x4 versions XI XD SPORT
- 2x 031173A: Rear trailing arm front bush SPORT
- 2x 031174A: Rear control arm upper inner SPORT
- 4x 031175A: Rear arm - outer bush SPORT
- 2x 031176A: Rear control arm lower inner SPORT
- 2x 031167A: Anti roll bar bush front / rear SPORT
- 2x 031413A: Rear subframe front bush SPORT
or - 2x 031413B: Rear subframe front bush
- 2x 031414A: Rear subframe rear bush SPORT
or - 2x 031414B: Rear subframe rear bush
- 2x 031751A: Rear differential front mount bush SPORT
- 1x 031752A: Rear differential rear mount bush SPORT
- 2x 031962A: Rear anti roll bar link to anti roll bar bush SPORT
- 2x 031963A: Rear anti roll bar link to arm bush SPORT
Diagrams:
- D0319

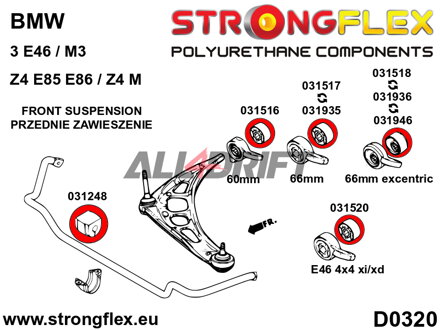

- D0320
- D0322
- S0345

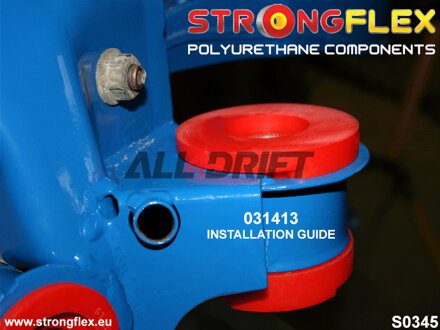

- S0346

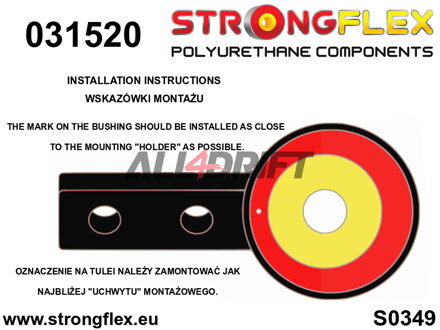

- S0349
Notes
- Front wishbone bush - rear:
031516 - centric 60mm
031517 - centric 66mm
031518 - eccentric 66mm
031520 - 4x4 versions XI XD - Rear subframe bushings 031413 and 031414:
Choose the appropriate hardness 80ShA (red) / 90ShA (yellow).
Before installing the 90ShA (yellow) bushings, we recommend reinforcing the beam with additional welding or spacers. The original beam without reinforcements may be damaged during "aggressive driving".
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 27
Hardness: 90Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
