Reference: 016244A
Product name: Full suspension bush kit SPORT
Fits to:
- Alfa Romeo GTV (95-05) type 916
- Alfa Romeo Spider (95-06) type 916
Include:
- 2x 011811A Front anti roll bar bush SPORT
or - 2x 011813A Front anti roll bar bush SPORT
- 2x 011808A Front lower wishbone front bush SPORT
- 2x 011809A Front lower wishbone rear bush 47mm SPORT
or - 2x 011810A Front lower wishbone rear bush 48mm SPOR
- 4x 011655A Rear upper arm bush SPORT
- 2x 011656A Rear lower spring front bush SPORT
- 2x 011657A Rear lower spring rear bush SPORT
- 2x 011658A Rear lower inner swing arm bush SPORT
- 2x 011659A Swing arm shock mount bush SPORT
- 2x 011660A Rear lower swing arm outer bush SPORT
- 4x 011961A Rear toe adjuster bush SPORT
- 2x 011712A Rear anti roll bar bush SPORT
Notes:
There are two types of front anti roll bar bushings.
011811 (20mm) GTV & Spider 95-02
011813 (15mm) GTV & Spider 03-05
Check the diameter and type of bushing suitable for your car.
Bush 011808A works only with oryginal wishbone - centre pins 21mm.
For mounting this bushes you must reuse old metal parts from your original wishbones.
The diameter of the bush 011809A is 47mm, check the diameter of the bracket before buying.
If the inner diameter of bracket is 48mm, select the bush 011810A
This bush works only with oryginal wishbone - centre pins 21mm.
For mounting this bushes you must reuse old metal parts (stell or aluminium) from your original wishbones.

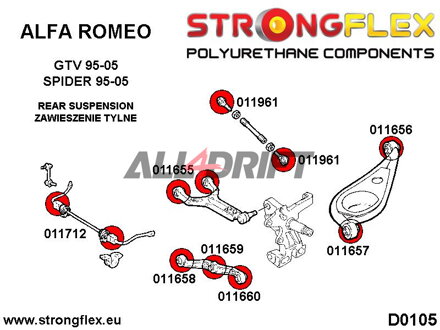

Diagrams:
- D0105
- D0107
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 26
Hardness: 90Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
