Reference: 016244B

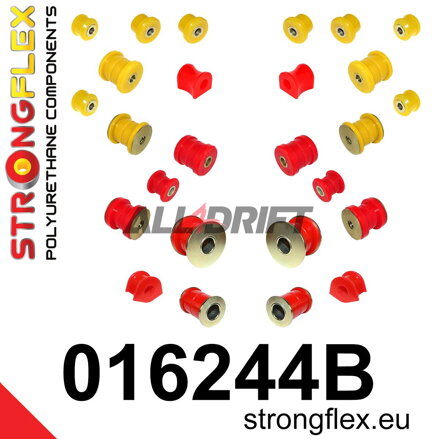

Product name: Full suspension bush kit
Fits to:
- Alfa Romeo GTV (95-05) type 916
- Alfa Romeo Spider (95-06) type 916
Include:
- 2x 011811B Front anti roll bar bush
or - 2x 011813B Front anti roll bar bush
- 2x 011808B Front lower wishbone front bush
- 2x 011809B Front lower wishbone rear bush 47mm
or - 2x 011810B Front lower wishbone rear bush 48mm
- 4x 011655A Rear upper arm bush SPORT
- 2x 011656A Rear lower spring front bush SPORT
- 2x 011657A Rear lower spring rear bush SPORT
- 2x 011658B Rear lower inner swing arm bush
- 2x 011659B Swing arm shock mount bush
- 2x 011660B Rear lower swing arm outer bush
- 4x 011961A Rear toe adjuster bush SPORT
- 2x 011712B Rear anti roll bar bush
Notes:
There are two types of front anti roll bar bushings.
011811 (20mm) GTV & Spider 95-02
011813 (15mm) GTV & Spider 03-05
Check the diameter and type of bushing suitable for your car.
Bush 011808B works only with oryginal wishbone - centre pins 21mm.
For mounting this bushes you must reuse old metal parts from your original wishbones.
The diameter of the bush 011809B is 47mm, check the diameter of the bracket before buying.
If the inner diameter of bracket is 48mm, select the bush 011810B
This bush works only with oryginal wishbone - centre pins 21mm.
For mounting this bushes you must reuse old metal parts (stell or aluminium) from your original wishbones.
Some bushes in the kit are only available in 90ShA hardness (yellow) because the original rubber bush is made of a hard rubber compound.
The use of the 80ShA hardness bush (red) will reduce the driving of the car to the original rubber bush.
Diagrams:
- D0105
- D0107
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 26
Hardness: 80Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
